MCP

Expose the read-only tools and the investigate, triage, explain and generate capabilities to external agents (Claude Desktop, Cursor, custom). Streamable HTTP, tokens issued per role, the same gates and audit as the UI. Since 1.9.0.

The MCP server is a resident process that starts and stops with splunkd (bin/copilot_mcp_server.py, a scripted input with interval=-1). Off by default; the switch on MCP under Settings takes effect immediately.

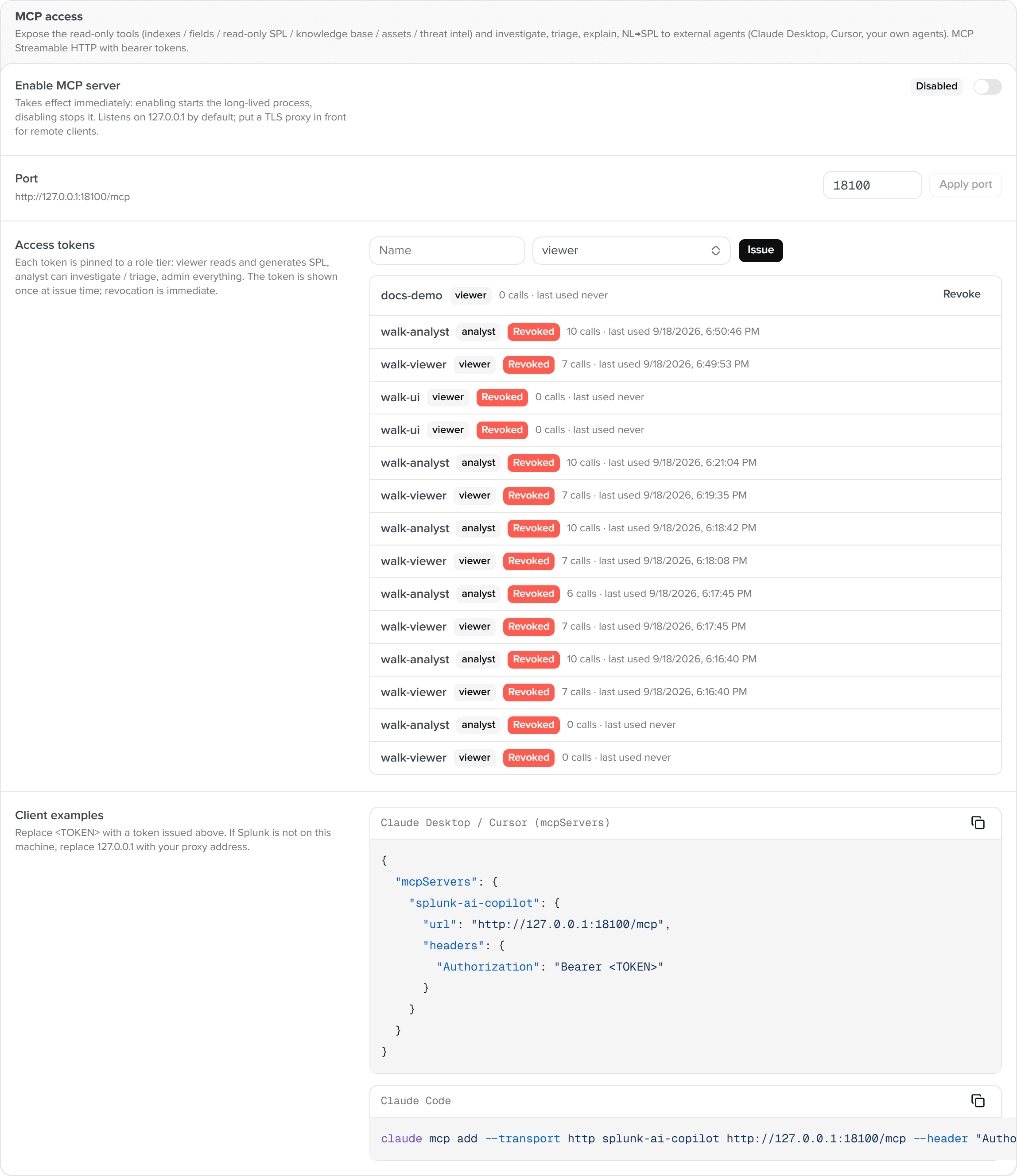

MCP

Switch and address

Item	Default	Notes
Enabled	off	On starts the process, off stops it
Bind	`127.0.0.1`	Loopback, `0.0.0.0` and `::1` only. MCP speaks plain HTTP, so tokens and results are not encrypted; for other machines a TLS reverse proxy in front is required, with access control on the proxy. A non-loopback bind logs a warning at startup
Port	`18100`
Protocol	MCP Streamable HTTP	`http://<bind>:<port>/mcp`. `GET /health` is unauthenticated

Search account

From 2.0.4 the index tools (run_spl, list_indexes, list_sourcetypes, get_fields) run as a low-privilege Splunk account, whose index permissions splunkd enforces.

Step	Notes
Create the account	A new Splunk user with only `copilot_use` and read access to the indexes you want to expose to external agents
Create a token	A Splunk auth token for that account (the Tokens page under Settings in Splunk Web)
Enter it	Account name and token in the search account section on this page, then save. The token goes to `storage/passwords`; write-only, never shown back

Without a search account these four tools return forbidden and never fall back to the system session; the knowledge-base, asset and LLM tools are unaffected.

Tokens and roles

Every request carries Authorization: Bearer rsk_…. Tokens are issued on this page; the plaintext is shown once and the KV store keeps a sha256 only. Revocation is immediate. A token is bound to a role tier and an issuer cannot issue above their own:

Tier	Tools
viewer	`list_indexes`, `list_sourcetypes`, `get_fields`, `run_spl`, `search_kb`, `lookup_asset`, `threat_intel`, `generate_spl`, `explain_event`
analyst	Above plus `investigate_alert`, `triage_alerts`
admin	Same as analyst, reserved

A missing, wrong or revoked token returns 401; an insufficient tier makes the tool return {"error":"forbidden"} (MCP has no per-tool 403). Rate limiting reuses [limits] rate_per_min and burst, per token.

Token issued

Tools

Tool	Notes
`list_indexes()`	Indexes with event counts, allow-listed only
`list_sourcetypes(index)`	Sourcetypes of an index
`get_fields(index, sourcetype)`	Real field names from the last 24 h with masked samples
`run_spl(spl)`	Read-only SPL, up to 20 rows, masked. `delete`, `collect`, `outputlookup`, `sendemail`, `script`, `rest` and similar are refused
`search_kb(query, k)`	Runbook and knowledge-base retrieval, including synced Splunk objects
`lookup_asset(entity, kind)`	Asset and identity context
`threat_intel(indicator, kind)`	Threat intel. Egresses only with `[threat_intel]` configured
`generate_spl(question, index, sourcetype)`	Natural language to read-only SPL, same engine as the home page
`explain_event(event, sourcetype)`	Single-event explanation
`investigate_alert(alert, context, sourcetype)`	Alert investigation (timeline, MITRE, impact, false-positive verdict)
`triage_alerts(alerts[], max_clusters)`	Batch triage clustering and scoring

Resources: copilot://kb/{id}, copilot://reports/latest. Prompt template: investigate.

Security boundary

Item	Notes
Read-only	Every Splunk-side call goes through the read-only gate: the first command must be a read-only generating command, and write, notify, shell, `map`, macros, `dbx*`, `fit`, `rest` and similar are refused in every pipeline segment and subsearch; plus `[limits] agentic_index_whitelist` and `[masking] mode`
Licence and roles	Same as the UI. Paid tools without a licence return `license_required`
Audit	One audit event per call (`via=mcp`), filterable in Audit log
Session	The index tools run as the search account (above); the other tools run as `splunk-system-user`. That user is absent under a Splunk Free licence, so MCP gets no session there

Connecting

Claude Desktop and Cursor (mcpServers):

{
  "mcpServers": {
    "splunk-ai-copilot": {
      "url": "http://127.0.0.1:18100/mcp",
      "headers": { "Authorization": "Bearer <TOKEN>" }
    }
  }
}

Claude Code:

claude mcp add --transport http splunk-ai-copilot http://127.0.0.1:18100/mcp \
  --header "Authorization: Bearer <TOKEN>"

Troubleshooting

Symptom	Action
Enabled but shown as not responding	Check `index=_internal sourcetype=copilot:mcp` or `copilot_mcp_server` in `splunkd.log`. Usual causes: the port is taken or `splunk-system-user` does not exist
Everything 401	Token revoked, or the `Bearer` prefix is missing
`run_spl` and similar return `forbidden`: no MCP search account is configured	Configure the search account on this page
Tool returns `forbidden`	Tier too low; use an analyst token
`license_required`	Not activated or licence expired
`refused: index … not in the allowed set`	`[limits] agentic_index_whitelist` omits that index
